Demo Overview¶
The simulator includes six pre-built demonstrations that showcase the building blocks and their compositions.
Try it online — all demos are available on the live deployment. No installation required.

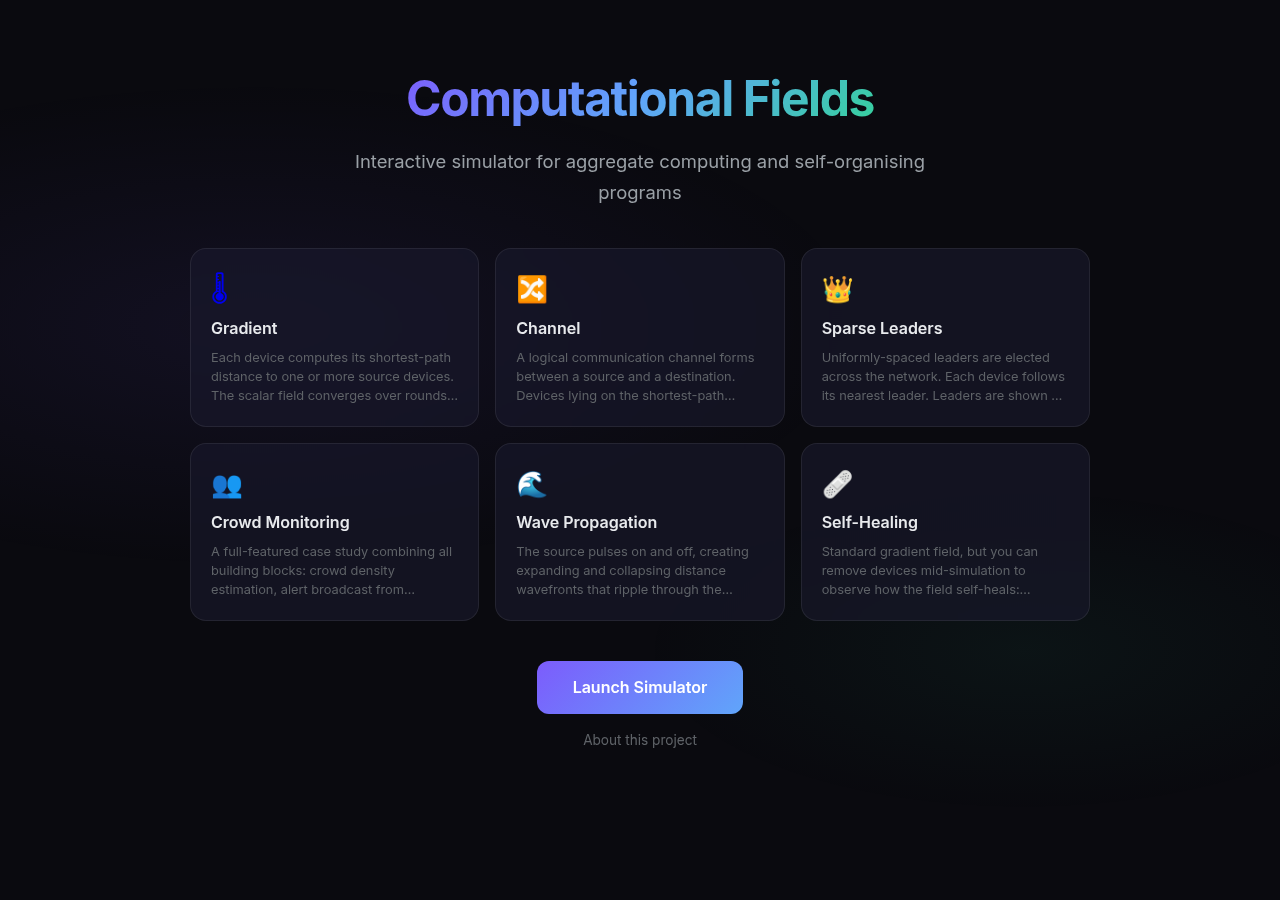

Welcome Page¶
Each demo card links directly to the simulator with that demo pre-selected.

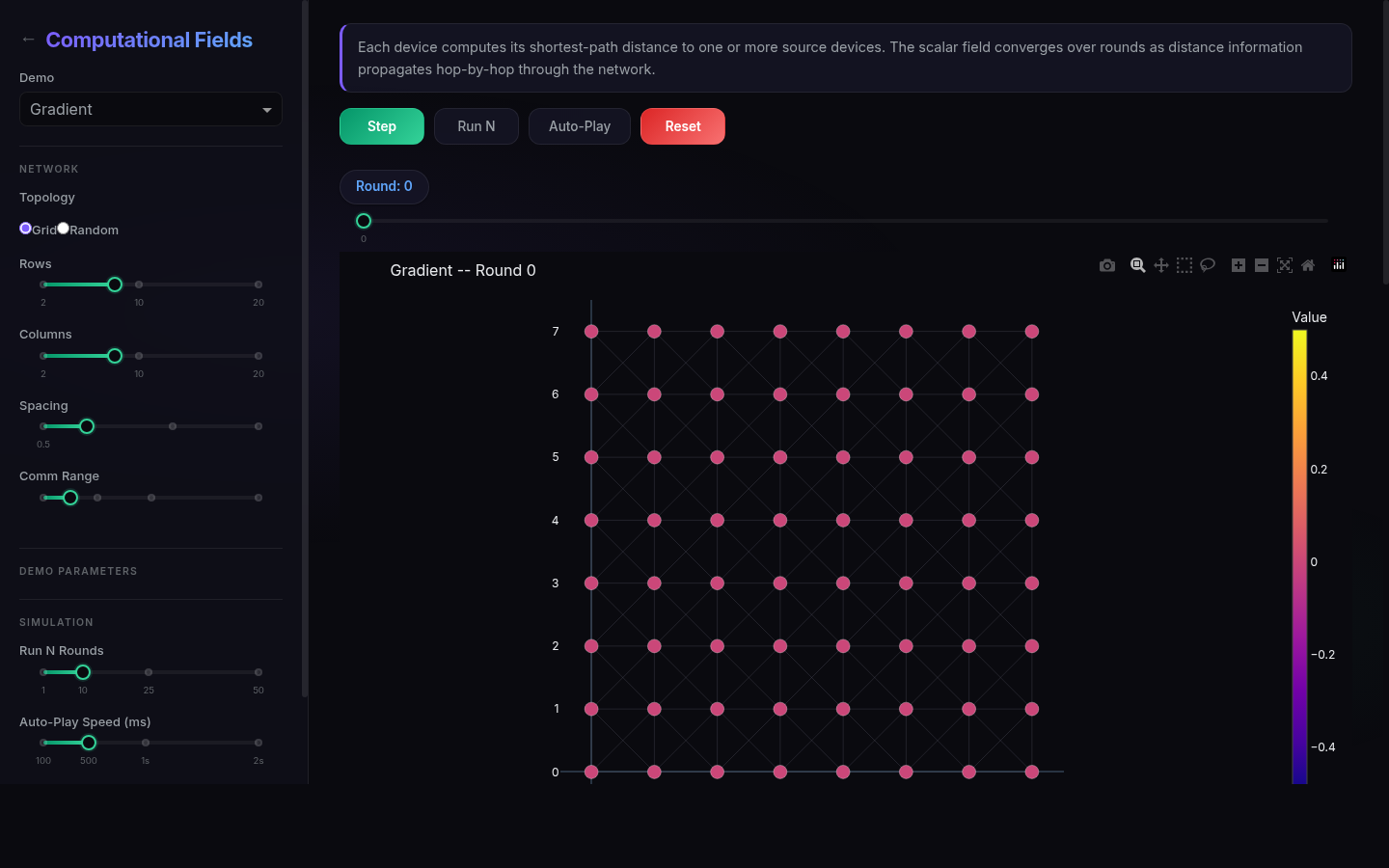

Simulator Interface¶
The simulator provides:
- Real-time field visualisation with interactive Plotly charts
- Step-by-step execution or continuous auto-play
- History scrubbing to review past rounds
- Configurable network topology, size, and communication range
- Convergence monitoring via a dedicated chart
- Theory panels with mathematical background for each demo
Available Demos¶
| Demo | Type | Blocks Used | What It Shows |
|---|---|---|---|
| Gradient | Scalar field | G | Distance propagation, convergence |
| Channel | Categorical | G + G + G | Path formation, composition |
| Sparse Leaders | Leader map | S | Election, Voronoi partitioning |
| Crowd Monitoring | Multi-field | G + C + S + broadcast | Full case study |
| Wave Propagation | Scalar field | G + rep | Periodic behaviour |
| Self-Healing | Scalar field | G | Fault tolerance |
